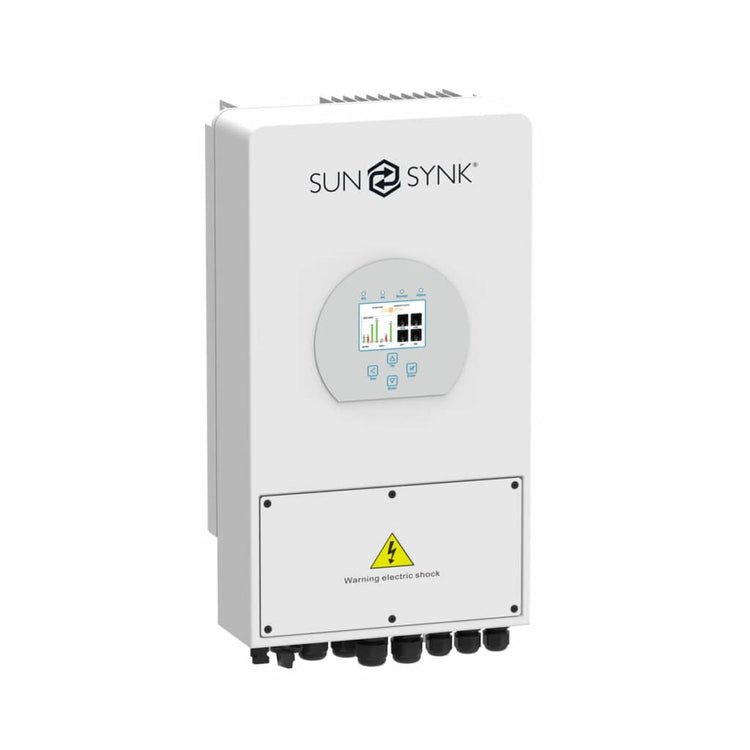

Sunsynk Hybrid Inverter 5kW 48V + WiFi Dongle

Battery Type: Lead-acid or Li-lon
Battery Voltage Range (V): 40-60V
Max. Charging Current (A): 120A
Max. Discharging Current (A): 120A
Charging curve: 3 Stages/Equalization
External Temperature Sensor: Optional
Charging Strategy for Lithium Battery: Self-adaption to BMS
AC Output Data:
Rated AC Output and UPS Power (W): 5000W
Max AC Output Power (W): 5500W
Peak Power (off-grid): 2 times of rated power, 10 seconds
AC Output Rated Current (A): 21.7.4A
Max. AC Current (A): 25A
Max Continuous AC Pass-through (A): 35A
Output Frequency and Voltage: 50Hz; 240Vac
Grid Type: THD<3% (Linear load<1.5%)
Current Harmonic Distortion: THD<3% (Linear load<1.5%)
High Efficiency and Protection:
Max. Efficiency: 97.60%
Euro Efficiency: 96.50%
MPPT Efficiency: 99.90%
Multiple protection features ensure the safety and longevity of your system.
Certifications and Standards: SUNSYNK is compliant with various grid regulations and safety standards, including UL1741, IEEE1547, VDE0126, and more. It adheres to safety regulations like IEC62109-1 and IEC62109-2 and meets EMC requirements. General Data:
Operating Temperature Range (°C): -25—60°C, >45°C Derating
Cooling: Fan
Noise (dB): <30
Communication with BMS: RS485; CAN
Weight (kg): 20.5
Size (mm): 580 x 330 x 208mm
Protection Degree: IP65
Installation Style: Wall-mounted
Warranty: 5 years
Invest in the future of solar energy management with SUNSYNK. Enhance your energy self-sufficiency, save on electricity costs, and embrace a more sustainable lifestyle. With its user-friendly interface, reliability, versatility, and exceptional efficiency, SUNSYNK is your gateway to a greener and smarter energy future. Don’t miss out on the opportunity to revolutionize your energy system – choose SUNSYNK today
